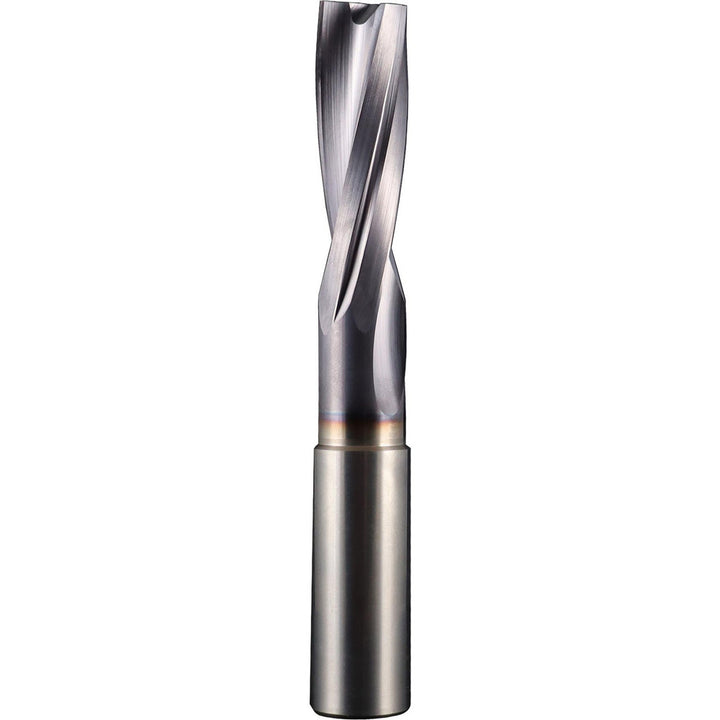

0.2283" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 180° point - SGS 67103
MFR# 67103Series 136U
$76.87List $98.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-X
Description
The SGS 67103 is a 0.2283" Solid Carbide Screw Machine drill bit with a Ti-NAMITE-X finish, 180° point. Suited for universal. Series 136U.
Specifications
Coating finishTi-NAMITE-X
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016
Drill bit size0.2283
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle180
Flute by diameter ratio2xD
Flute length (mm)20.30
Flute typeSpiral
Maximum drilling depth (mm)20.30
Number of flutes2
Number of margins4
Overall length2.3622
Point typeFlat Bottom
Primary workpiece materialUniversal
Shank diameter0.2362
Shank length1.5598
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
