SGS

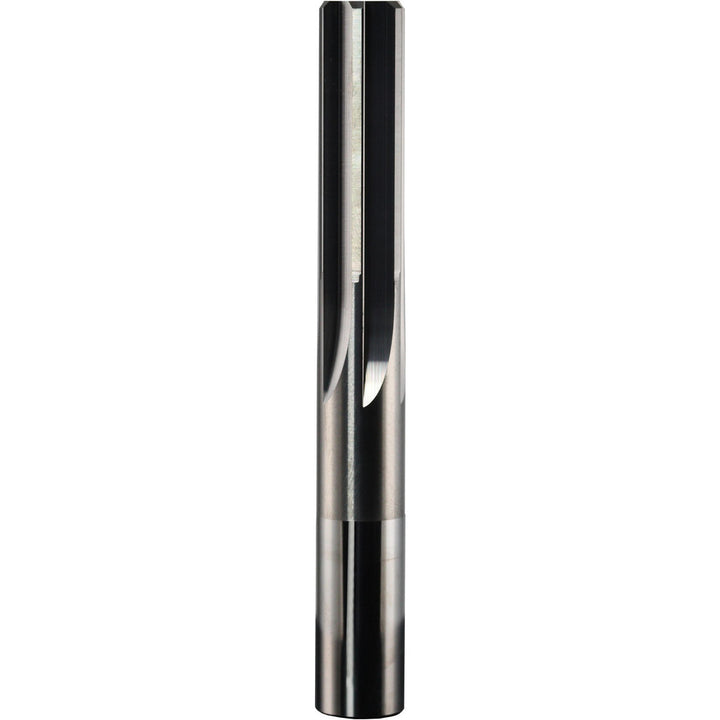

1/16" Solid Carbide Reamer - SGS 70004
MFR# 70004Series 200
$23.61List $30.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The SGS 70004 is a 1/16 Solid Carbide reamer. 1-1/2 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length in3/4
Flute typeStraight
Number of flutes4
Overall length in1-1/2
Over under size reamerNo
Reamer diameter in1/16
Reamer diameter range0.0500 - 0.0999
Reamer diameter tolerance+0.0002 to -0.0000 in
Shank diameter0.0625
Shank typeStraight-Cylindrical
Spiral directionRight Hand
Tool materialSolid Carbide
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
