SGS
3/16" Solid Carbide Reamer - SGS 70012
MFR# 70012Series 200
$43.47List $55.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description

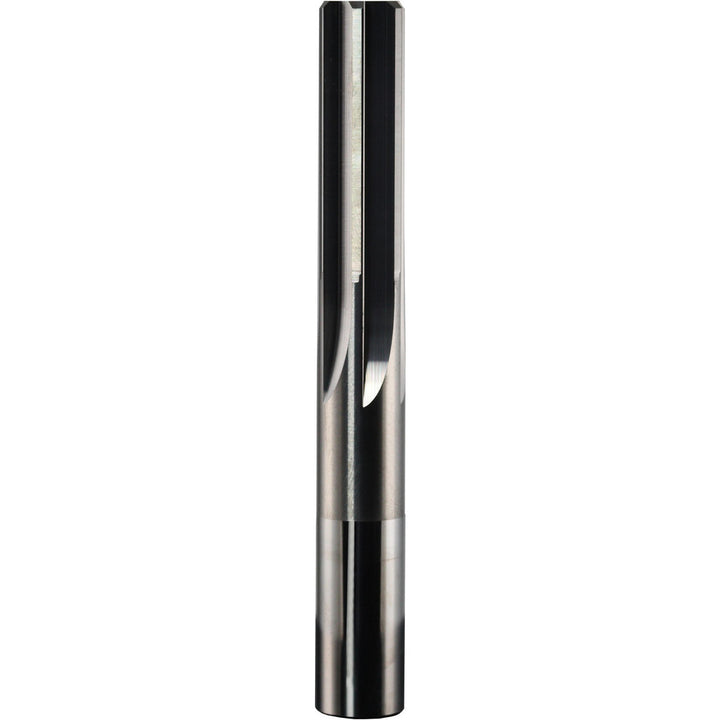

The SGS 70012 is a 3/16 Solid Carbide reamer. 2-3/4 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length in1-3/4
Flute typeStraight
Number of flutes4
Overall length in2-3/4
Over under size reamerNo
Reamer diameter in3/16
Reamer diameter range0.1500 - 0.1999
Reamer diameter tolerance+0.0002 to -0.0000 in
Shank typeStraight-Cylindrical
Spiral directionRight Hand
Tool materialSolid Carbide
