SGS

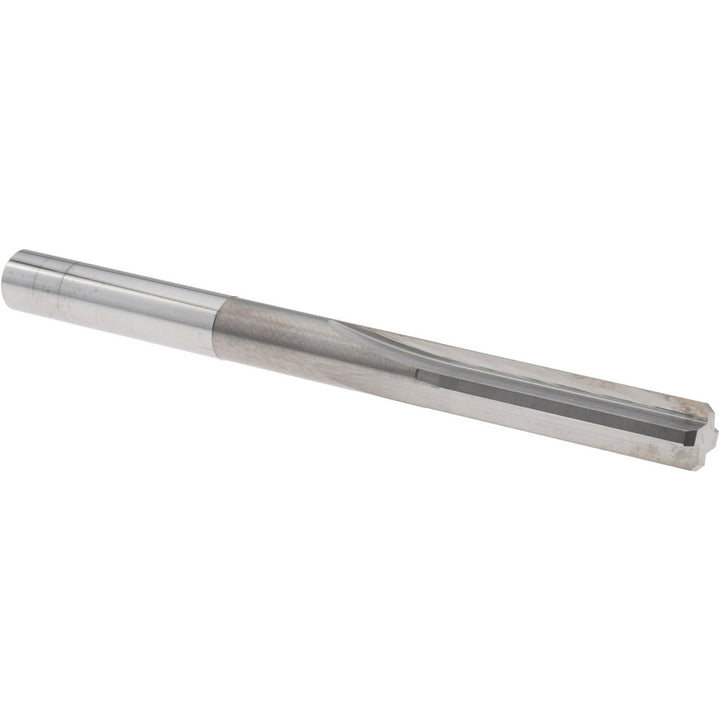

1/4" Solid Carbide Reamer - SGS 70016
MFR# 70016Series 200
$51.74List $66.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The SGS 70016 is a 1/4 Solid Carbide reamer. 3 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length in2
Flute typeStraight
Number of flutes4
Overall length in3
Over under size reamerNo
Reamer diameter in1/4
Reamer diameter letterE
Reamer diameter range0.2500 - 0.2999
Reamer diameter tolerance+0.0002 to -0.0000 in
Shank typeStraight-Cylindrical
Spiral directionRight Hand
Tool materialSolid Carbide
