SGS

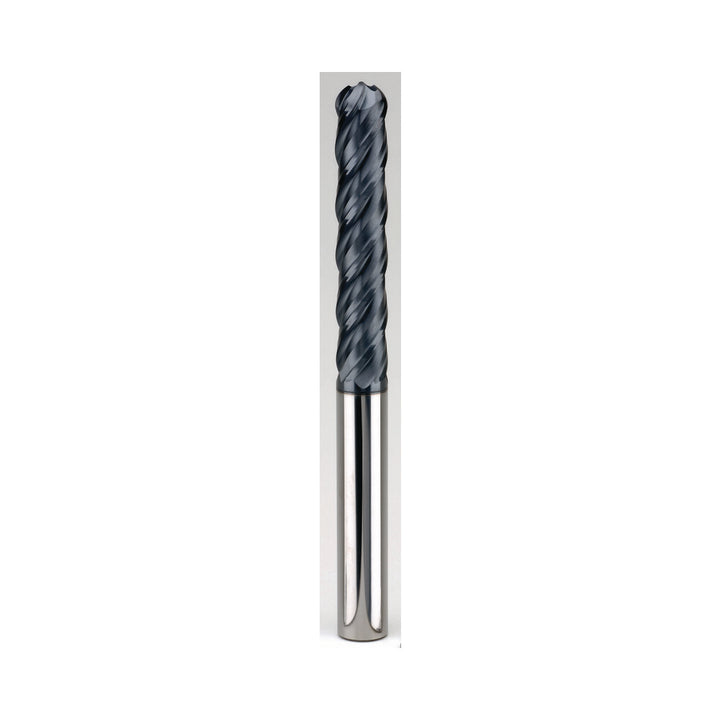

3/16" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 70445

MFR# 70445Series 7B

$41.41List $53.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 70445 is a 3/16 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-1/8 length of cut, 3 overall length. Series 7B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in1-1/8

Length typeExtra Long

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/16

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes4

Overall length in3

Shank diameter in3/16

Shank diameter tolerance+0.00000 to -0.00032 in

Single or double endSingle

Variable helixNo

Variable indexYes
