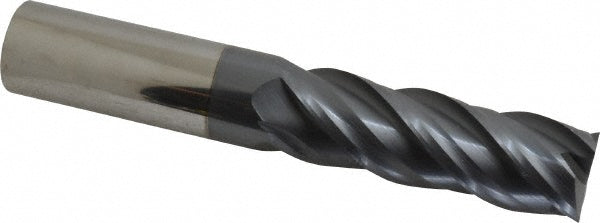

1" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 70489

SGS

1" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 70489

MFR# 70489Series 7

$536.06List $687.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 70489 is a 1 4-flute Solid Carbide (Micrograin) square end mill. 3 length of cut, 6 overall length. Series 7.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3
Length of cut range2.0000+
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in6
Shank diameter in1
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
