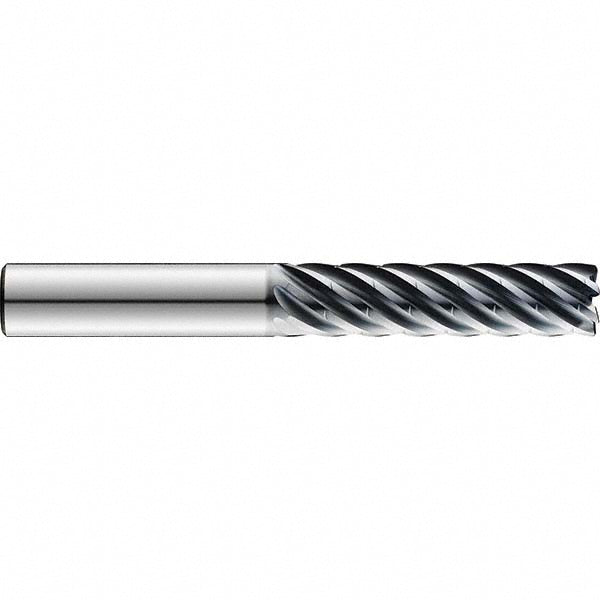

7-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 74394

SGS

7-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 74394

MFR# 74394Series 77MC

$80.93List $103.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes7
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 74394 is a 7-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 77MC.

Specifications

CentercuttingNo
ChipbreakerYes
Coating finishAlTiN
Coolant throughNo
Corner radius (mm)2.01
Corner radius tolerance-0.0500 to 0.0000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut5.0000
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter (mm)8.00
Mill diameter tolerance-0.0400 to 0.0000 mm
Number of flutes7
Overall length (mm)85.00
Overall length tolerance0.0620 to -0.0620 in; 0.0620 to -0.0620 mm
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter (mm)8.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
