SGS

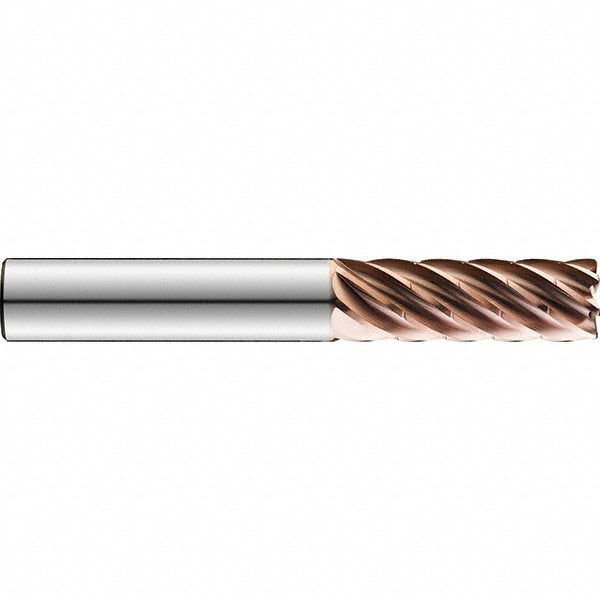

1/4" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77103
MFR# 77103Series 77
$59.88List $75.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes7
MaterialSolid Carbide
CoatingTiN
Description
The SGS 77103 is a 1/4 7-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 77.
Specifications
CentercuttingNo
ChipbreakerYes
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter toleranceh6
Number of flutes7
Overall length in2-1/2
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
