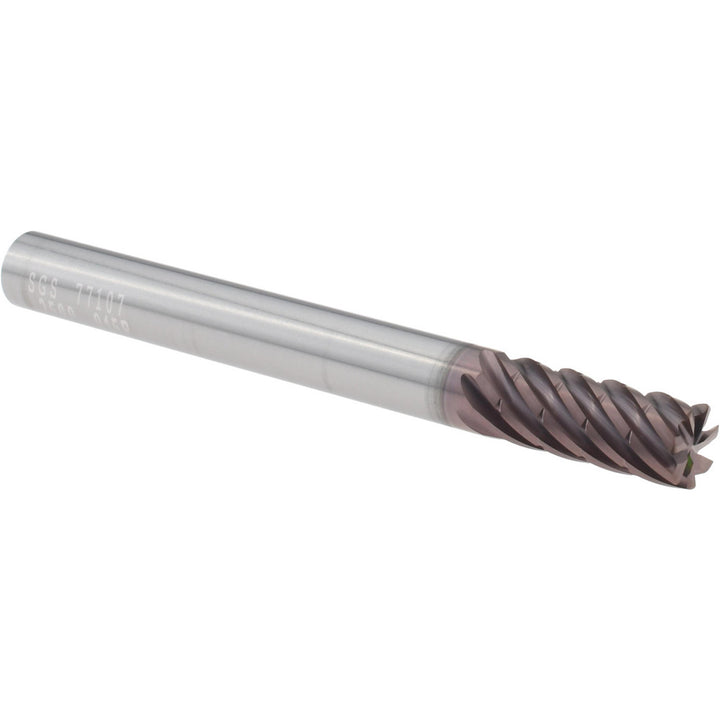

1/4" 7-Flute Solid Carbide Corner Radius End Mill, TM - SGS 77107

SGS

1/4" 7-Flute Solid Carbide Corner Radius End Mill, TM - SGS 77107

MFR# 77107Series 77C

$49.03List $62.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes7
MaterialSolid Carbide
CoatingTM

Description

The SGS 77107 is a 1/4 7-flute Solid Carbide (Micrograin) corner radius end mill with a TM finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/8 length of cut, 2-1/2 overall length. Series 77C.

Specifications

CentercuttingNo
ChipbreakerYes
Coating finishTM
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in5/8
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/4
Mill diameter tolerance-0.0012/0.0000 in
Number of flutes7
Overall length in2-1/2
Overall length tolerance0.0620/-0.0620 in; 0.0620/-0.0620 mm
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
