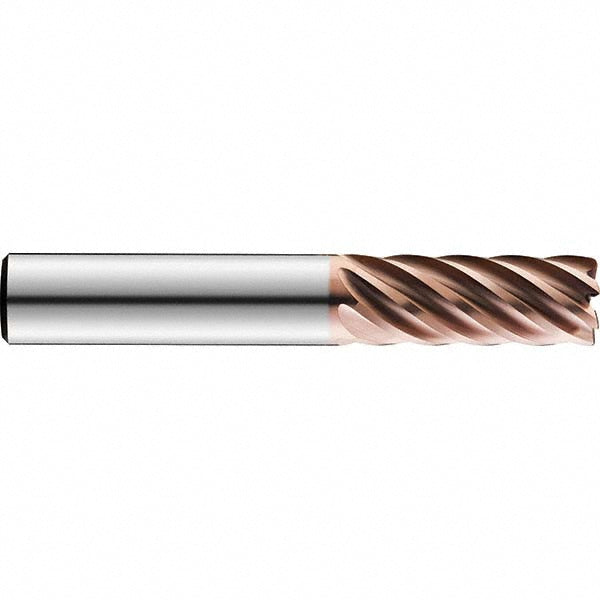

1/4" 7-Flute Solid Carbide Corner Radius End Mill, TM - SGS 77129

SGS

1/4" 7-Flute Solid Carbide Corner Radius End Mill, TM - SGS 77129

MFR# 77129Series 77C

$66.84List $85.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes7
MaterialSolid Carbide
CoatingTM

Description

The SGS 77129 is a 1/4 7-flute Solid Carbide (Micrograin) corner radius end mill with a TM finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series 77C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTM
Coolant throughNo
Corner radius0.0150
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in1
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/4
Mill diameter tolerance-0.0012 to 0.0000 in
Number of flutes7
Overall length in3
Overall length tolerance0.0620 to -0.0620 in; 0.0620 to -0.0620 mm
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
