SGS

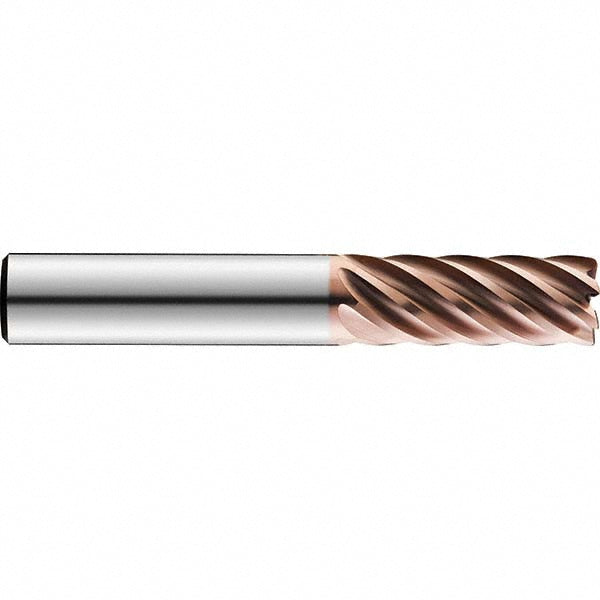

3/8" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77137
MFR# 77137Series 77
$81.52List $104.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes7
MaterialSolid Carbide
CoatingTiN
Description
The SGS 77137 is a 3/8 7-flute Solid Carbide (Micrograin) square end mill. 15/16 length of cut, 3 overall length. Series 77.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in15/16
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8
Mill diameter toleranceh6
Number of flutes7
Overall length in3
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
