SGS

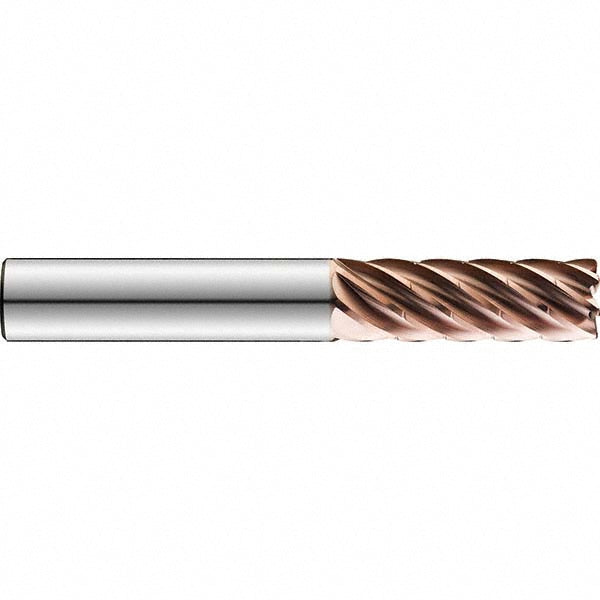

3/8" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77139
MFR# 77139Series 77
$85.60List $109.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes7
MaterialSolid Carbide
CoatingTiN
Description
The SGS 77139 is a 3/8 7-flute Solid Carbide (Micrograin) square end mill. 15/16 length of cut, 3 overall length. Series 77.
Specifications
CentercuttingNo
ChipbreakerYes
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in15/16
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8
Mill diameter toleranceh6
Number of flutes7
Overall length in3
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
