SGS

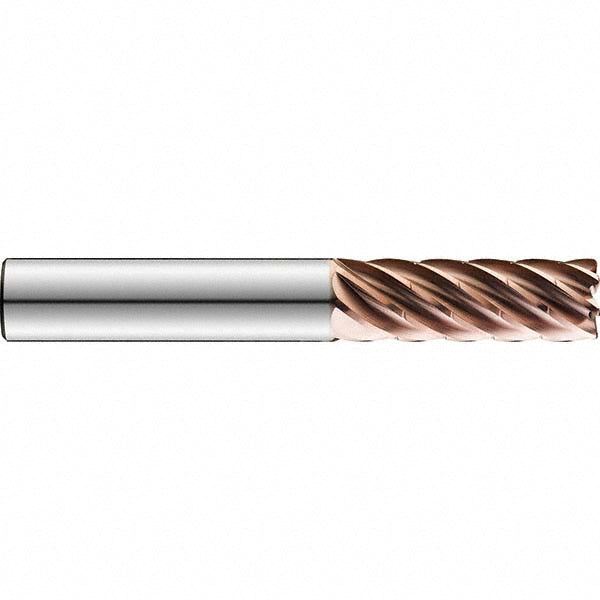

1/2" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77187
MFR# 77187Series 77
$169.92List $217.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes7
MaterialSolid Carbide
CoatingTiN
Description
The SGS 77187 is a 1/2 7-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 3-1/2 overall length. Series 77.
Specifications
CentercuttingNo
ChipbreakerYes
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1-1/2
Length typeLong
Material gradeMicrograin
Mill diameter in1/2
Mill diameter toleranceh6
Number of flutes7
Overall length in3-1/2
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
