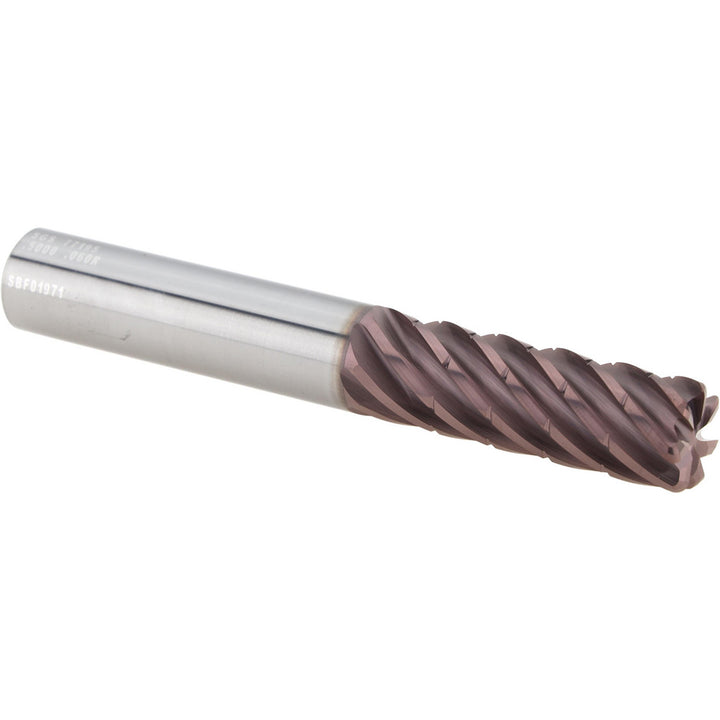

1/2" 7-Flute Solid Carbide Corner Radius End Mill, TM - SGS 77195

MFR# 77195Series 77C

$169.92List $217.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes7

MaterialSolid Carbide

CoatingTM

Description

The SGS 77195 is a 1/2 7-flute Solid Carbide (Micrograin) corner radius end mill with a TM finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 3-1/2 overall length. Series 77C.

Specifications

CentercuttingNo

ChipbreakerYes

Coating finishTM

Coolant throughNo

Corner radius0.0600

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in1-1/2

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/2

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes7

Overall length in3-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
