SGS

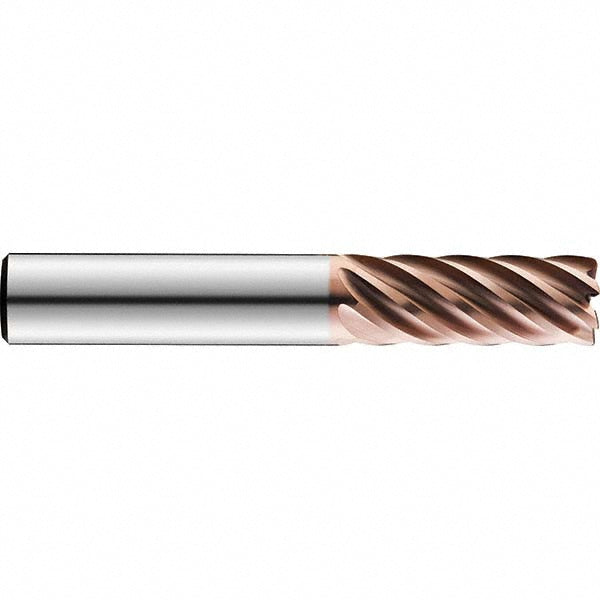

1/2" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77197
MFR# 77197Series 77
$148.21List $190.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes7
MaterialSolid Carbide
CoatingTiN
Description
The SGS 77197 is a 1/2 7-flute Solid Carbide (Micrograin) square end mill. 2 length of cut, 4 overall length. Series 77.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in2
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1/2
Mill diameter toleranceh6
Number of flutes7
Overall length in4
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
