SGS

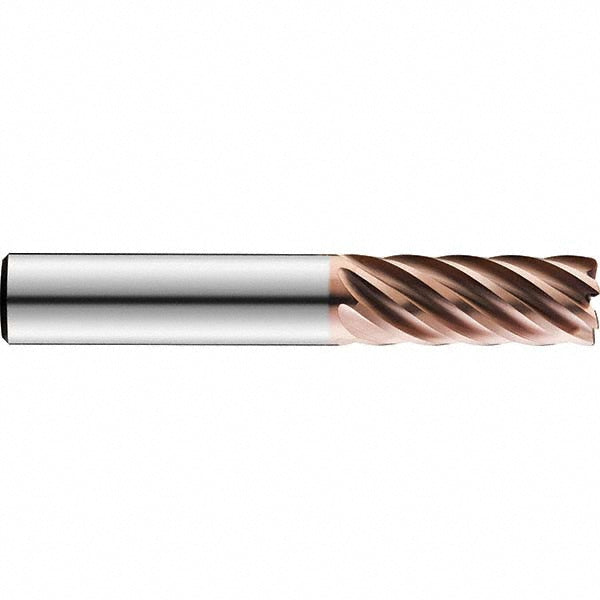

5/8" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77221
MFR# 77221Series 77
$230.99List $296.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes7
MaterialSolid Carbide
CoatingTiN
Description
The SGS 77221 is a 5/8 7-flute Solid Carbide (Micrograin) square end mill. 1-7/8 length of cut, 4 overall length. Series 77.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1-7/8
Length typeLong
Material gradeMicrograin
Mill diameter in5/8
Mill diameter toleranceh6
Number of flutes7
Overall length in4
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
