SGS

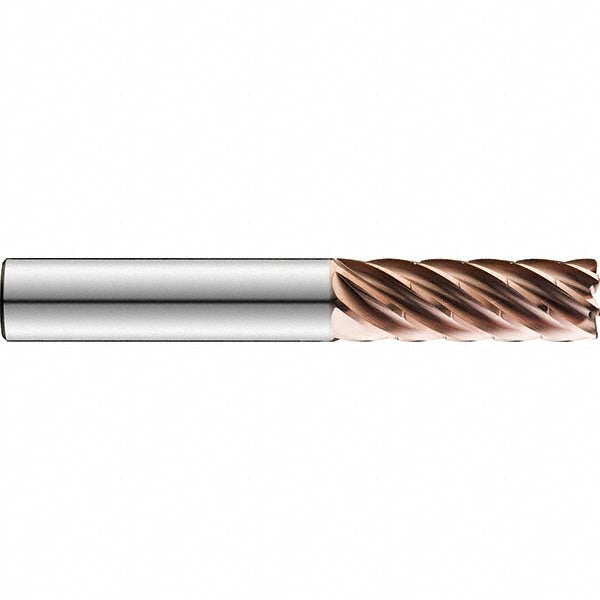

3/4" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77279
MFR# 77279Series 77
$377.86List $484.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes7
MaterialSolid Carbide
CoatingTiN
Description
The SGS 77279 is a 3/4 7-flute Solid Carbide (Micrograin) square end mill. 3 length of cut, 5-1/4 overall length. Series 77.
Specifications
CentercuttingNo
ChipbreakerYes
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in3
Length typeExtra Long
Material gradeMicrograin
Mill diameter in3/4
Mill diameter toleranceh6
Number of flutes7
Overall length in5-1/4
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
