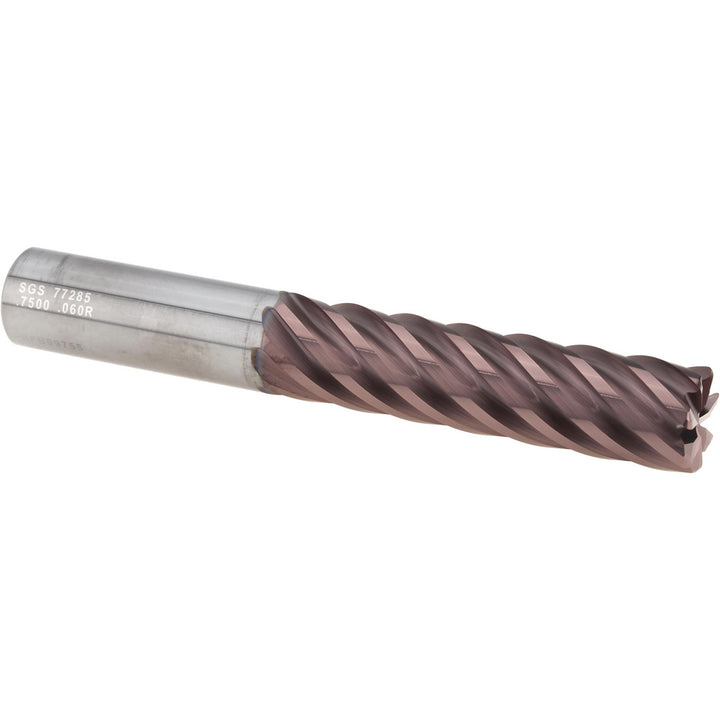

3/4" 7-Flute Solid Carbide Corner Radius End Mill, TM - SGS 77285

MFR# 77285Series 77C

$403.03List $516.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes7

MaterialSolid Carbide

CoatingTM

Description

The SGS 77285 is a 3/4 7-flute Solid Carbide (Micrograin) corner radius end mill with a TM finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3 length of cut, 5-1/4 overall length. Series 77C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTM

Coolant throughNo

Corner radius0.0600

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in3

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/4

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes7

Overall length in5-1/4

Overall length tolerance0.0620/-0.0620 in; 0.0620/-0.0620 mm

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
