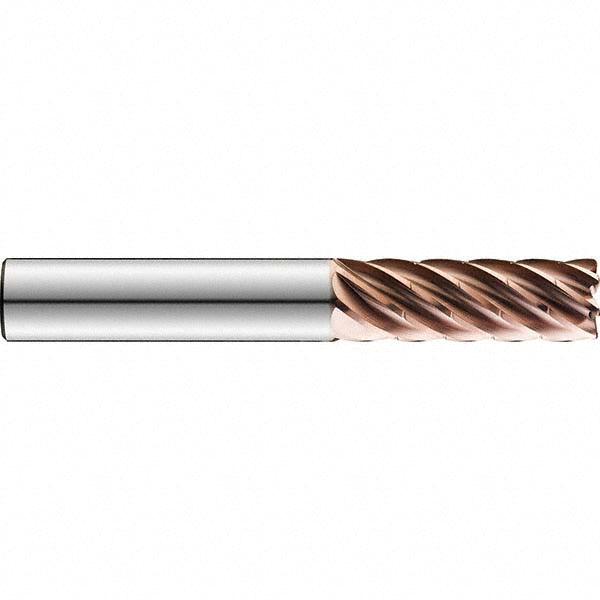

1" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77295

SGS

1" 7-Flute Solid Carbide Square End Mill, TiN - SGS 77295

MFR# 77295Series 77

$488.57List $626.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes7
MaterialSolid Carbide
CoatingTiN

Description

The SGS 77295 is a 1 7-flute Solid Carbide (Micrograin) square end mill. 2-1/2 length of cut, 5-1/2 overall length. Series 77.

Specifications

CentercuttingNo
ChipbreakerYes
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in2-1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in1
Mill diameter toleranceh6
Number of flutes7
Overall length in5-1/2
Overall length tolerance+0.062/-0.062 in; +0.062/-0.062 mm
Shank diameter in1
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
