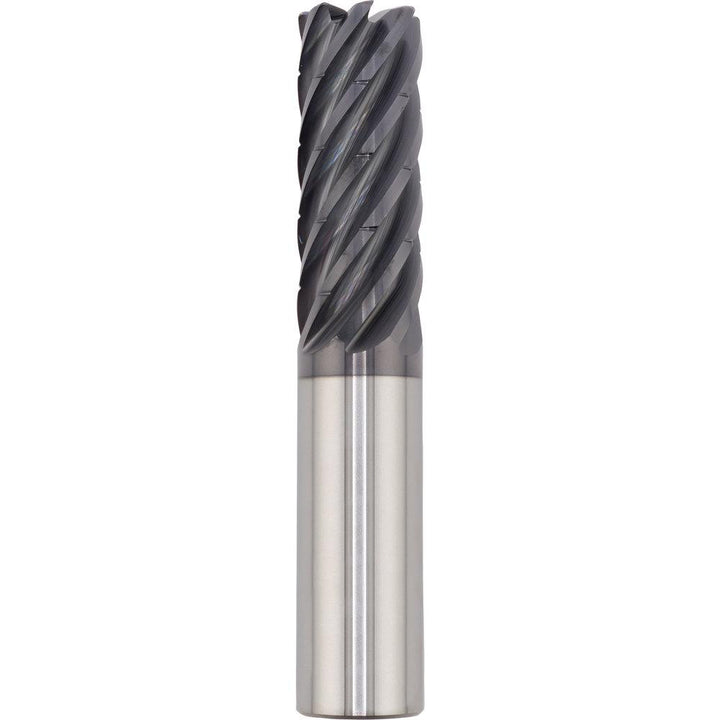

1" 7-Flute Solid Carbide Corner Radius End Mill, Ti-NAMITE-A - SGS 77474
MFR# 77474Series 77CR
$766.03List $982.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes7
MaterialSolid Carbide
CoatingTi-NAMITE-A
Description
The SGS 77474 is a 1 7-flute Solid Carbide (Micrograin) corner radius end mill with a Ti-NAMITE-A finish for longer tool life. Suited for steel, cast iron, high temperature alloy, stainless steel. 2-1/2 length of cut, 5-1/2 overall length. Series 77CR.
Specifications
CentercuttingNo
ChipbreakerYes
Coating finishTi-NAMITE-A
Coolant throughYes
Corner radius0.1200
Corner radius tolerance+0.0000/-0.0020"
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in2-1/2
Length typeRegular
Manufacturers catalog number77474
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.0000/-0.0020"
Number of flutes7
Overall length in5-1/2
Primary workpiece materialSteel; Cast Iron; High Temperature Alloy; Stainless Steel
Secondary workpiece materialHard Material
Shank diameter in1
Shank diameter tolerance+0.00000/-0.00051"
Shank typeStraight
Single or double endSingle
Variable helixYes
Variable indexNo
