SGS

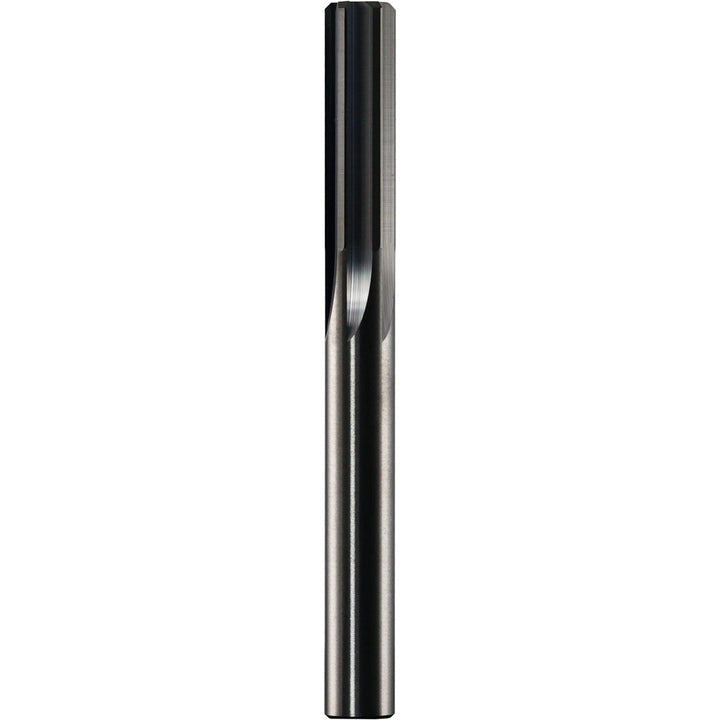

0.0787" Solid Carbide Reamer - SGS 81005
MFR# 81005Series 201
$37.13List $47.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The SGS 81005 is a 0.0787 Solid Carbide reamer.
Specifications
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)12.70
Flute typeStraight
Number of flutes4
Overall length (mm)44.00
Over under size reamerNo
Reamer diameter0.0787
Reamer diameter range0.0500 - 0.0999
Reamer diameter tolerance+0.008 to -0.000 mm
Shank typeStraight-Cylindrical
Spiral directionRight Hand
Tool materialSolid Carbide
