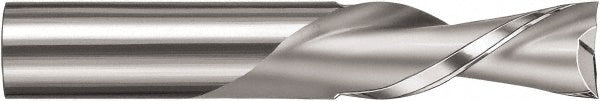

Spiral Router Bits - SGS 91017
MFR# 91017Series 22
$35.10List $45.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.1/4
Description
The SGS 91017 spiral router bits. Series 22.
Specifications
Bit materialSolid Carbide
Cutter diameter in1/4
Cutter diameter tolerance-0.003 to +0.000 in
Cutting directionRight Hand
Flute typeDowncut
Helix angle35
Length of cut in1
Material applicationComposite Plastics; Non-Ferrous Materials
Overall length in2-1/2
PilotedNo
Router styleSquare End
Secondary workpiece materialNon-Ferrous Metal
Shank diameter in1/4
Shank diameter tolerance-0.000350 to +0.000000
Shank length in1-1/2
