SGS

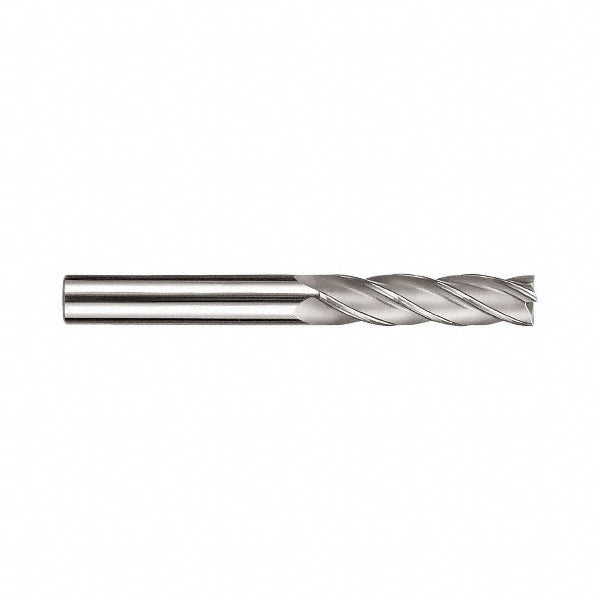

3/16" 4-Flute Solid Carbide Square End Mill, DLC - SGS 93325

MFR# 93325Series 1L-AD

$57.66List $73.95 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingDLC

Description

The SGS 93325 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill with a DLC finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 1L-AD.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeLong

Material gradeMicrograin

Mill diameter in3/16

Number of flutes4

Overall length in2-1/2

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
