ShopForce

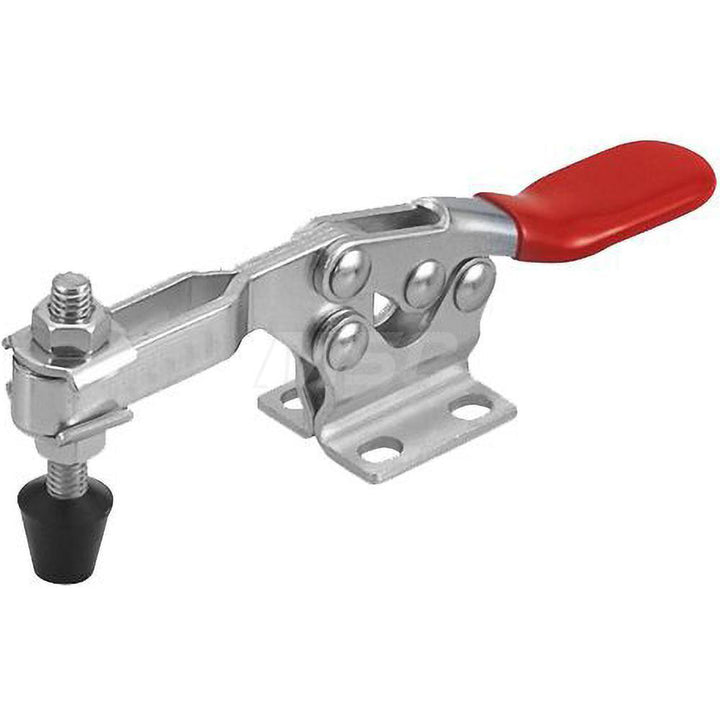

Toggle Clamp - ShopForce 60100
MFR# 60100
$10.80List $13.56
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The ShopForce 60100 is a plastic toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleU-Bar
Base length in1-1/2
Base styleFlanged
Base width in1.3800
Finish coatingSteel
Front of base to tip of toggle bar2.7600
Handle colorRed
Handle movement degrees65
Handle orientationHorizontal
Handle styleComfort Grip
Height under bar1.3700
Holding capacity kg226.80
Holding capacity lb500.00
Holding capacity n2224.11
Length distance between mount holes in7/8
MaterialPlastic
Mounting hole diameter0.2600
Overall height1.8700
Overall length6.6200
Spindle length2-1/2
Spindle thread size5/16-18
Width distance between mount holes0.8200
