Skoda

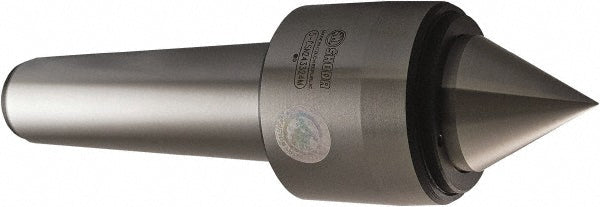

Lathe Center - Skoda 310125
MFR# 310125
$440.70List $553.19
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Skoda 310125 is a steel lathe center.
Specifications
Accuracy0.000200
Bearing typeRoller
Carbide tipped pointNo
FeaturesComplete Protection of Bearings Form The Ingress of Coolant; Dirt or Swarf; Heavy-Duty Ball Thrust Bearing; Prevents Loss Of Lubricant; Rotating Spindle; Two Specially Designed Adjustable Needle-Roller Bearings
Gage line diameter1.7480
Head diameter2.7559
Head length2.6600
Included angle60
Load capacity4400.00lb
MaterialSteel
Maximum rpm3500
Maximum workpiece weight lb3000.00
Overall length9.4488
Point diameter2.7559
Point length1.8503
Point styleStandard
Shank diameter in1-3/4
Shank length in4-15/16
Shank typeMorse Taper
Taper sizeMT5
Tip diameter1.7710
Tip length1.8503
