SPI

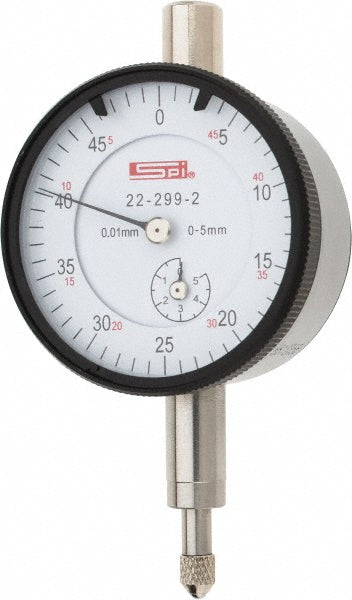

Dial Indicator - SPI CMS160714021
MFR# CMS160714021
$48.21List $73.56
Save 34%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The SPI CMS160714021 is a dial indicator. Meets NIST Certified; US Federal Specifications.
Specifications
Accuracy (mm)0.0160
Agdgpno1
Back typeLug
Dial colorWhite
Dial diameter (mm)42.00
Dial graduation (mm)0.0100
Dial reading0-50
FeaturesCounter Pointer; Easy Reading; Universal Positioning Capability
IncludesNIST Traceability Certification
Maximum measurement (mm)5.00
Measuring force n1.50
Minimum measurement (mm)0.00
Range per revolution (mm)0.50
Revolution counterNo
StandardsNIST Certified; US Federal Specifications
Stem diameter (mm)8.00
Thread size#4-48; M2.5
Traceability certification includedNIST
