SPI

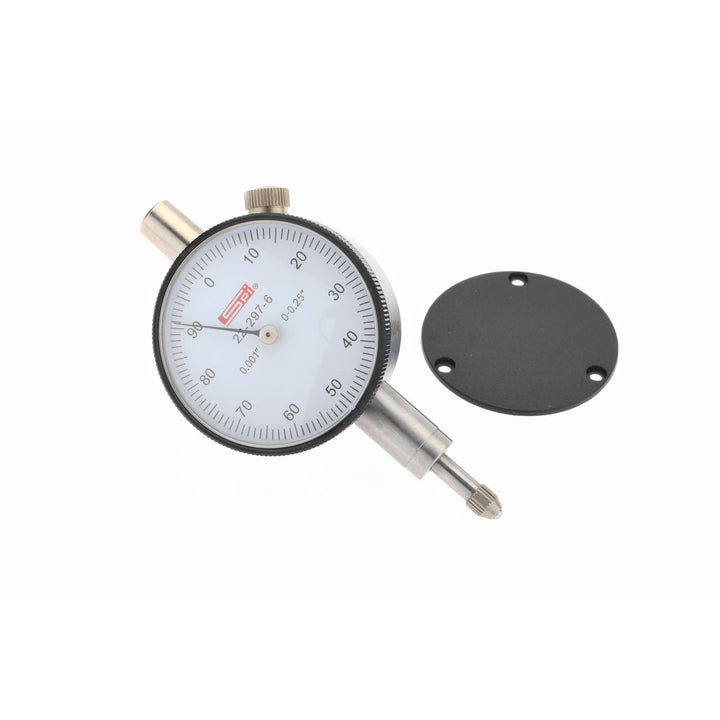

0.2500" Dial Indicator, 0.001000" grad - SPI CMS160714033
MFR# CMS160714033
$45.18List $62.08
Save 27%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The SPI CMS160714033 is a 0.2500" dial indicator. 0.001000" graduation. Meets NIST Certified; US Federal Specifications.
Specifications
Accuracy0.001000
Agdgpno1
Back typeLug
Dial colorWhite
Dial diameter1.6100
Dial graduation0.001000
Dial reading0-100
FeaturesCounter Pointer; Easy Reading; Universal Positioning Capability
IncludesNIST Traceability Certification
Maximum measurement in1/4
Measuring force n1.50
Minimum measurement0.0000
Range per revolution0.1000
Revolution counterNo
StandardsNIST Certified; US Federal Specifications
Stem diameter in3/8
Thread size#4-48; M2.5
Traceability certification includedNIST
