SPI

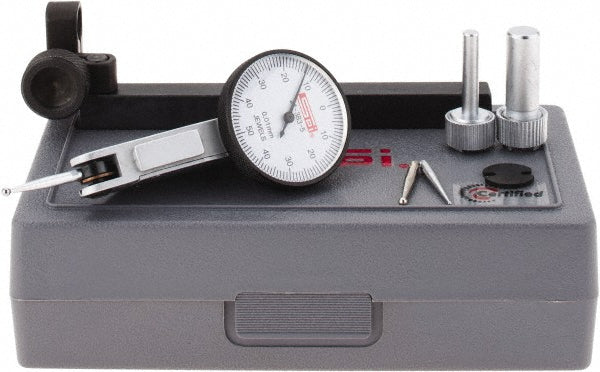

8-Piece Dial Indicator - SPI CMS160726103
MFR# CMS160726103
$153.80List $230.59
Save 33%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The SPI CMS160726103 is a dial indicator.
Specifications
Accuracy (mm)0.0130
Ball diameter0.080
Contact point length (mm)21.50
Dial colorWhite
Dial diameter (mm)32.00
Dial graduation (mm)0.0100
Dial reading0-50-0
Diameter (mm)2.00
FeaturesDovetail Stem; Fully Jeweled Movement; Satin Chrome Finish; Universal Positioning
Includes(2) Contact Point; 5/32 and 3/8 in dia. Dovetail Extensions; Fitted Case; Height Gage Bar; Indicator; Short Form Certificate of Calibration; Universal Clamp
Indicator styleHorizontal
Kit typeDial Test Indicator
Maximum measurement (mm)1.00
Minimum measurement (mm)1
Number of pieces8
Range per revolution (mm)1.00
