SPI
Micrometer - SPI CMS220519042
MFR# CMS220519042
$161.80List $246.88
Save 34%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

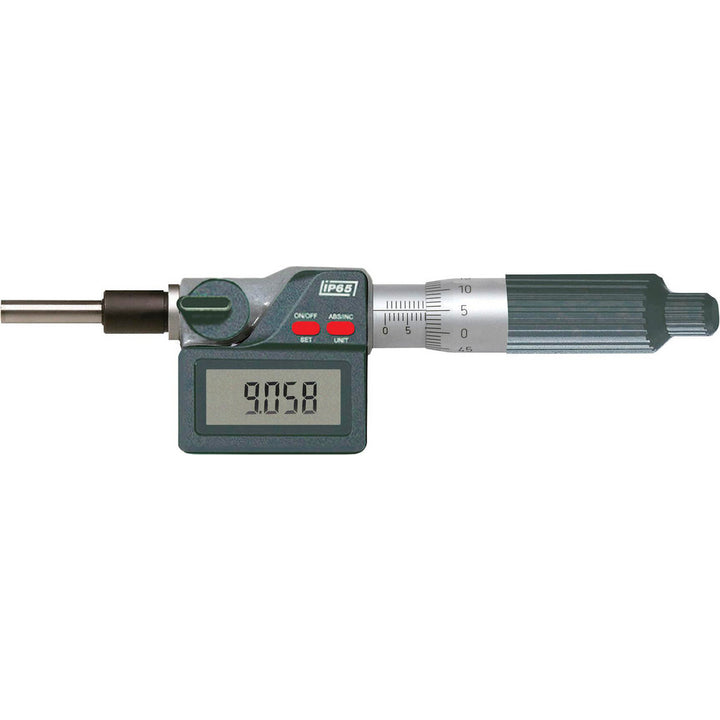

The SPI CMS220519042 is a carbide micrometer. Meets ASME 89.1.13.
Specifications
Accuracy.0001 in
Batteries includedYes
Battery chemistryLithium
Battery size3V; CR2032
CalibratedYes
Clamp nut suppliedNo
Data outputYes
IncludesWooden Box
Lock nut typeSpindle Lock
Maximum measurement1.00
Measuring face materialCarbide
Minimum measurement0
Number of batteries1
Overall length140.00
Resolution0.000
Rotating spindleYes
Shank diameter12.0000
Shank length17.5mm
Spindle diameter6.5mm
Spindle length28.5mm
Spindle shapeFlat
StandardsASME 89.1.13
Thimble diameter18mm
Thimble typeRatchet
