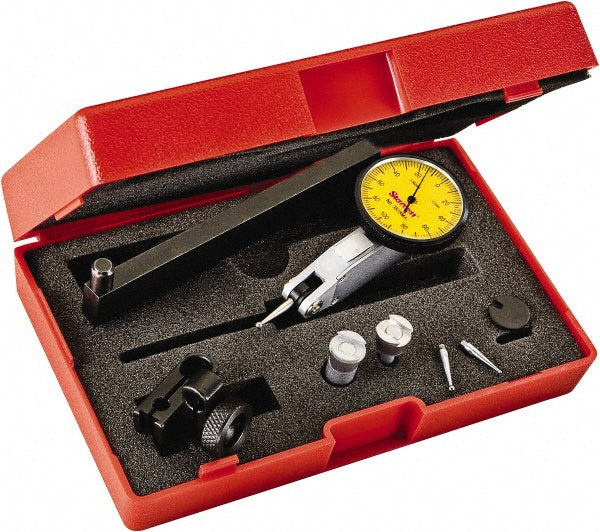

Dial Indicator - Starrett 12304

Starrett

Dial Indicator - Starrett 12304

MFR# 12304Series 3808

$302.32List $364.00 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Starrett 12304 is a dial indicator. Meets ANSI; ASME; California PROP 65.

Specifications

AttachmentsYes
Ball diameter (mm)2.00
Bearing typeJeweled
Contents(2) Contact Point; (2) Dovetail Clamp; Case; Contact Wrench; Swivel Post Holder; Tool Post Holder
Dial colorYellow
Dial diameter in1-1/4
Dial graduation (mm)0.0020
Dial reading0-100-0
FeaturesAdjustable Contact; Contact Point Reverses Automatically; Durable; High Contrast; Jeweled Movement; Narrow Body; Precision Gear-Driven Design; Replaceable Contact; Satin Chrome Finish
Indicator styleHorizontal
Maximum measurement (mm)0.20
Mount typeDovetail
Number of contact points included2
Range per revolution (mm)0.20
StandardsANSI; ASME; California PROP 65
StyleHorizontal
