Starrett

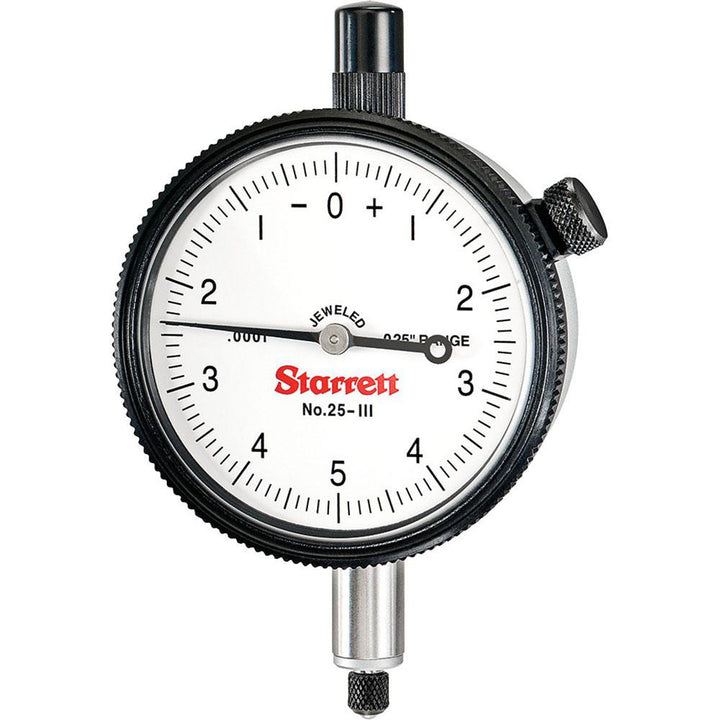

0.0250" Dial Indicator, 0.000100" grad - Starrett 53223
MFR# 53223
$330.56List $398.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Starrett 53223 is a 0.0250" dial indicator. 0.000100" graduation.
Specifications
Agdgpno2
Back typeLug
Bearing typeJeweled
Dial colorWhite
Dial diameter in2-1/4
Dial graduation0.000100
Dial reading0-5-0
FeaturesNo-Glare Satin Finish; Rugged; Sharp Bezel; Stainless Steel Stem; Unbreakable Crystal
IncludesFlat Back
Manufacturer s part number25-111J
Maximum measurement0.0250
Minimum measurement0.0000
Overall length (mm)70.00
Range per revolution0.0100
Revolution counterNo
Stem diameter0.3750
Stem length decimal inch0.7188
Stem length (mm)18.00
Unit of measureEnglish
