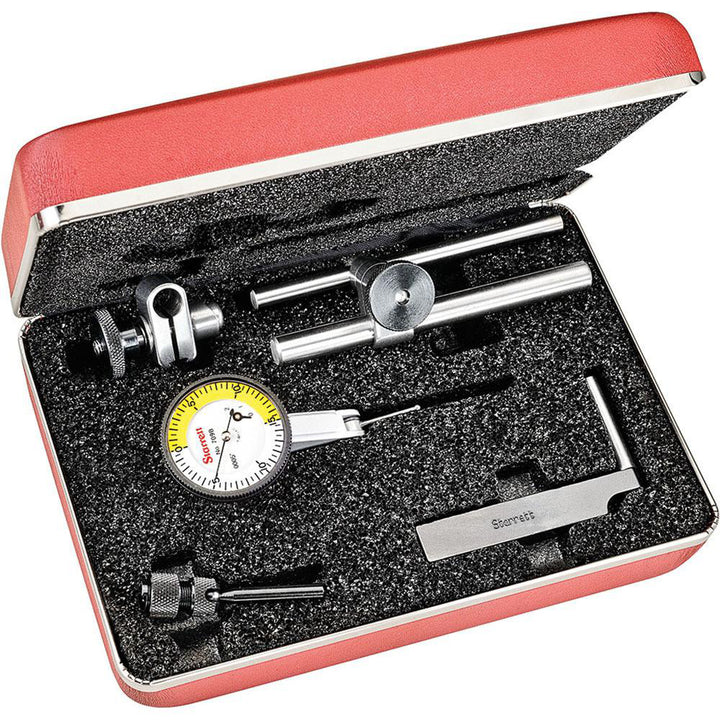

0.0600" 7-Piece Dial Indicator, 0.000500" grad - Starrett 64220

Starrett

0.0600" 7-Piece Dial Indicator, 0.000500" grad - Starrett 64220

MFR# 64220Series 709

$504.97List $608.00 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Starrett 64220 is a 0.0600" dial indicator. 0.000500" graduation. Meets California PROP 65; ISO.

Specifications

AttachmentsYes
Ball diameter0.078
Catalog industry number709BCZ
Contact point length (mm)20.64
Dial colorWhite
Dial diameter in1-3/8
Dial graduation0.000500
Dial reading0-15-0
Diameter in0.0780
FeaturesAdjustable Contact; Angled Head; Dovetail Mount; Durable; Jeweled Movement; Narrow Body; Precision Gear-Driven Design; Replaceable Contact; Revolution Count Hand; Satin Chrome Finish
IncludesCarbide Contact; Case; Dial Test Indicator; Dovetail Body Clamp; Snug & Rod Unit; Swivel Post Snug With Dovetail Indicator Clamp; Tool Post Holder
Kit typeDial Test Indicator
Manufacturer s part number709BCZ
Maximum measurement0.0600
Minimum measurement0.0000
Number of pieces7
StandardsCalifornia PROP 65; ISO
