Starrett

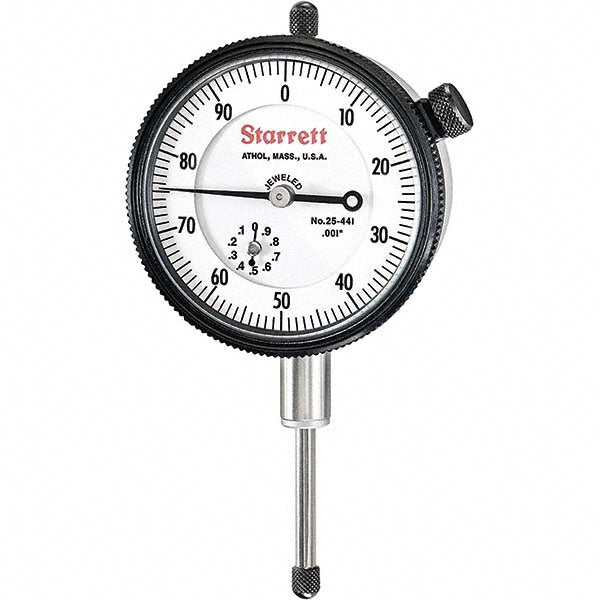

1.0000" Dial Indicator, 0.001000" grad - Starrett 66863
MFR# 66863
$256.67List $277.00
Save 7%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Starrett 66863 is a 1.0000" dial indicator. 0.001000" graduation.
Specifications
Back typeLug
Bearing typeJeweled
Dial colorWhite
Dial diameter in2-1/4
Dial graduation0.001000
Dial reading0-100
FeaturesNo-Glare Satin Finish; Rugged; Sharp Bezel; Stainless Steel Stem; Unbreakable Crystal
IncludesFlat Back
Maximum measurement in1
Minimum measurement0.0000
Overall length (mm)70.00
Range per revolution0.1000
Revolution counterYes
Stem diameter0.3750
Stem length decimal inch0.7188
Stem length (mm)18.00
Traceability certification includedNIST
Unit of measureEnglish
