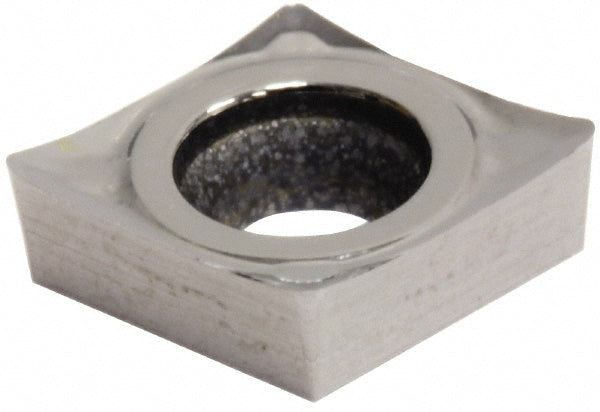

CCGT09T304N-AG Solid Carbide Insert, Grade H1 - Sumitomo 1033358
MFR# 1033358ISO/ANSI# CCGT09T304N-AGSeries CC
$16.23List $20.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1033358 is a CCGT09T304N-AG solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Ansi codeCCGT32.51NAG
Chip breakerNAG
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304N-AG
Manufacturer gradeH1
Material gradeC3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
