Sumitomo

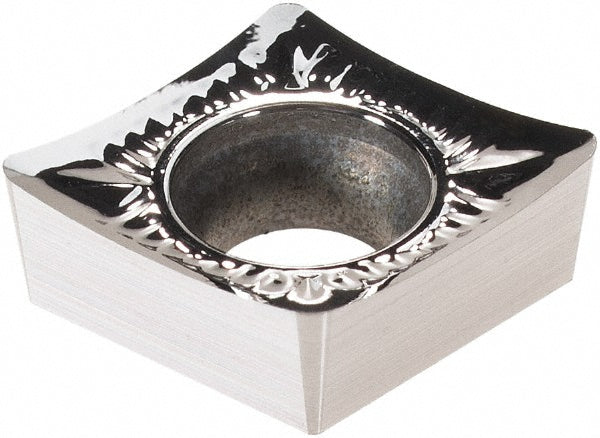

CCGT09T308N-AG Solid Carbide Insert, Grade H1 - Sumitomo 1033359
MFR# 1033359ISO/ANSI# CCGT09T308N-AGSeries CC
$18.66List $23.52
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1033359 is a CCGT09T308N-AG solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Ansi codeCCGT32.52NAG
Chip breakerNAG
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T308N-AG
Manufacturer gradeH1
Material gradeC3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
