Sumitomo

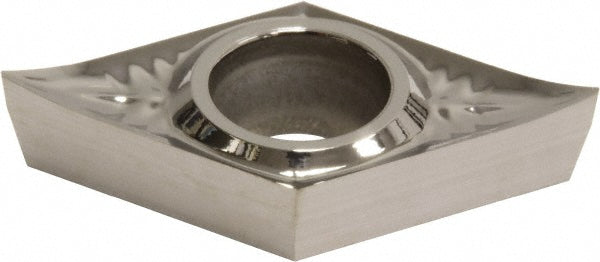

DCGT11T302N-AG Solid Carbide Insert, Grade H1 - Sumitomo 1033362
MFR# 1033362ISO/ANSI# DCGT11T302N-AGSeries DC
$18.00List $23.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1033362 is a DCGT11T302N-AG solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Ansi codeDCGT32.50.5NAG
Chip breakerNAG
Clearance codeC
Coating processUncoated
Corner radius0.0078
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.50.5
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T302N-AG
Manufacturer gradeH1
Material gradeC3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
