Sumitomo

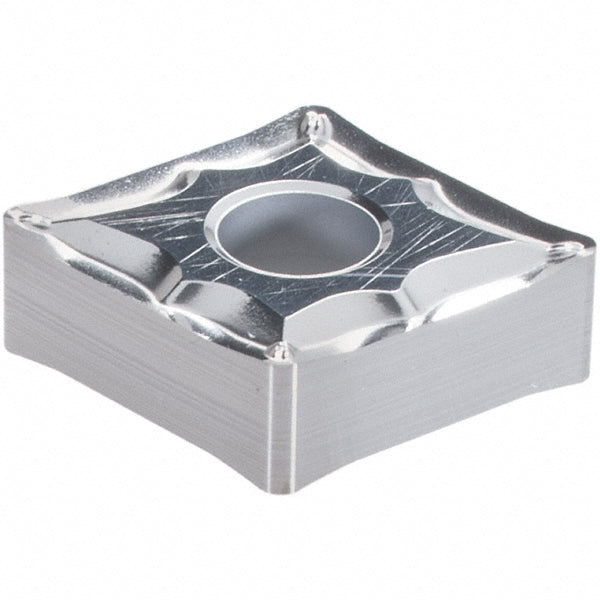

CNGG120408N-SUJ Solid Carbide Insert, Grade H1 - Sumitomo 1033W3N
MFR# 1033W3NISO/ANSI# CNGG120408N-SUJSeries CN
$16.38List $21.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1033W3N is a CNGG120408N-SUJ solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Ansi codeCNGG432ESUJ
Chip breakerESUJ
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120408N-SUJ
Manufacturer gradeH1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
