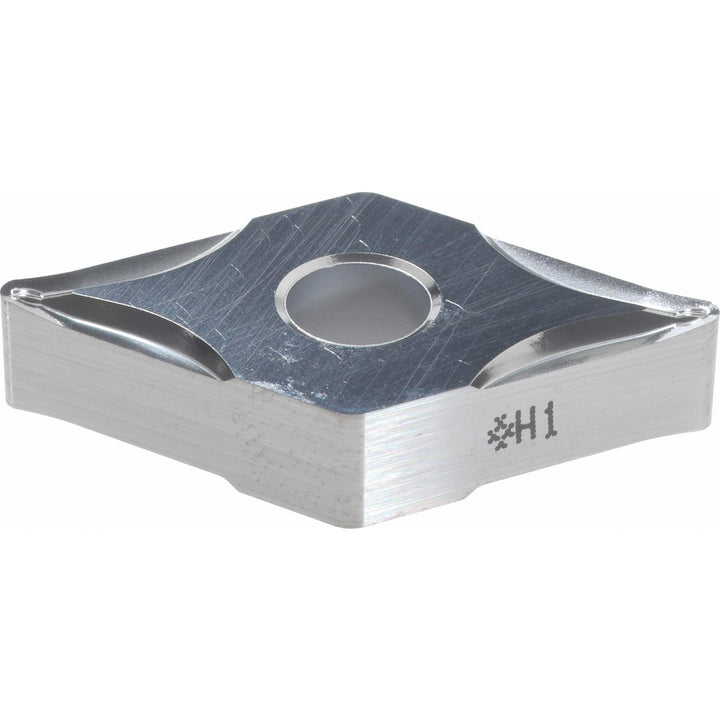

DNGG150408N-SUJ Solid Carbide Insert, Grade H1 - Sumitomo 1033W3R
MFR# 1033W3RISO/ANSI# DNGG150408N-SUJSeries DN
$17.03List $21.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1033W3R is a DNGG150408N-SUJ solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Ansi codeDNGG432ESUJ
Chip breakerESUJ
Clearance codeN
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150408N-SUJ
Manufacturer gradeH1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
