Sumitomo

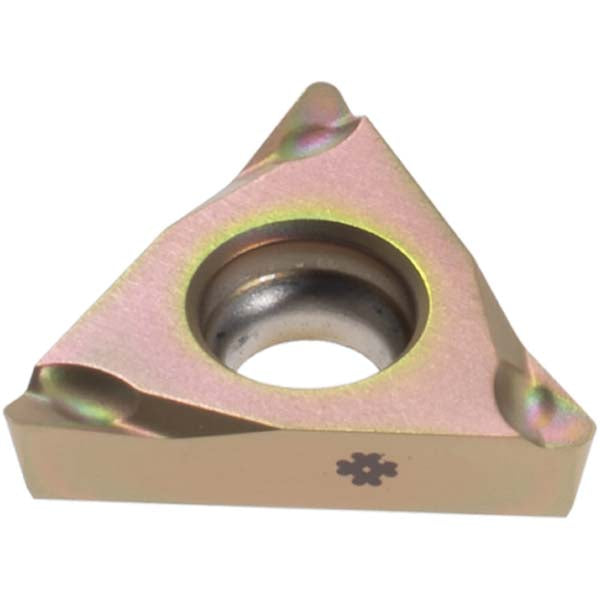

TPGT110204R-FW Cermet Insert, Grade T1500Z, Coated - Sumitomo 104A973
MFR# 104A973ISO/ANSI# TPGT110204R-FWSeries TP
$13.75List $17.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 104A973 is a TPGT110204R-FW cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi codeTPGT21.51RFW
Chip breakerRFW
Clearance codeP
Coating finishCoated
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle60.0
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4331
Insert materialCermet
Insert shapeTriangle
Insert size code21.51
Insert styleTPGT
Insert thickness in3/32
Iso codeTPGT110204R-FW
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
