Sumitomo

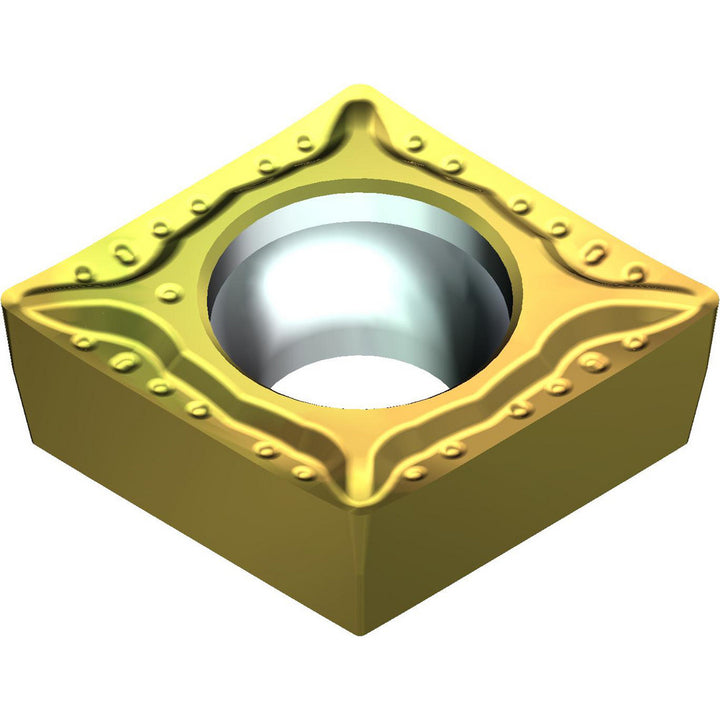

CCGT060202L-FX Cermet Insert, Grade T1500Z, Coated - Sumitomo 104AACS
MFR# 104AACSISO/ANSI# CCGT060202L-FXSeries CC
$11.13List $14.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 104AACS is a CCGT060202L-FX cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerLFX
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius in1/128
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.2520
Insert materialCermet
Insert shapeDiamond
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202L-FX
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
