Sumitomo

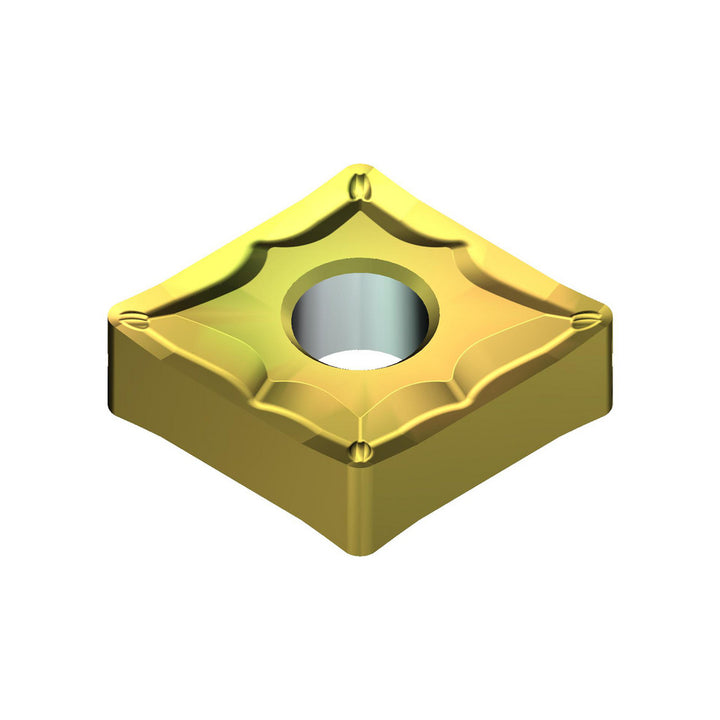

CNGG120402N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 104AAEN
MFR# 104AAENISO/ANSI# CNGG120402N-SUSeries CN
$13.42List $17.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 104AAEN is a CNGG120402N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi codeCNGG430.5ESU
Chip breakerESU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/128
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCermet
Insert shapeDiamond
Insert size code430.5
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120402N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
