Sumitomo

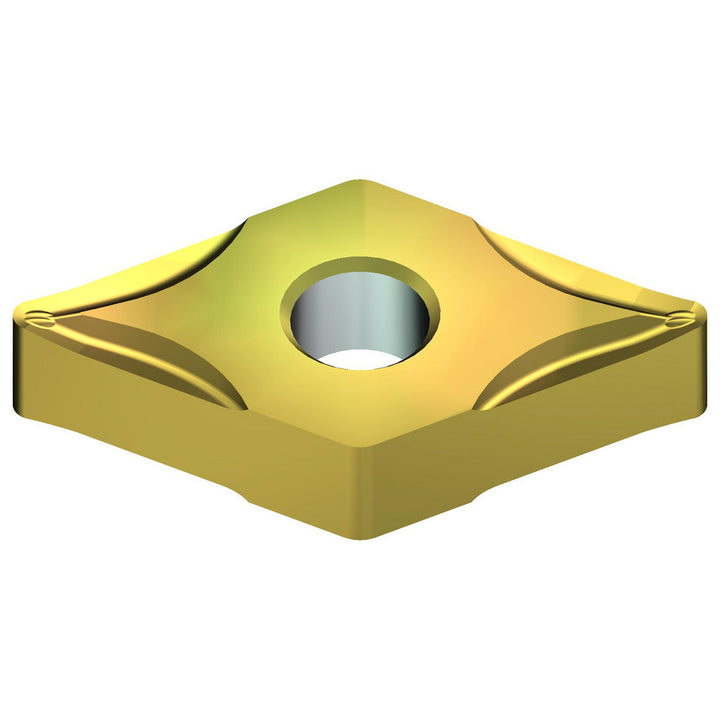

DNGG150402N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 104AAEV
MFR# 104AAEVISO/ANSI# DNGG150402N-SUSeries DN
$17.81List $22.45
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 104AAEV is a DNGG150402N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/128
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCermet
Insert shapeDiamond
Insert size code430.5
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150402N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
