Sumitomo

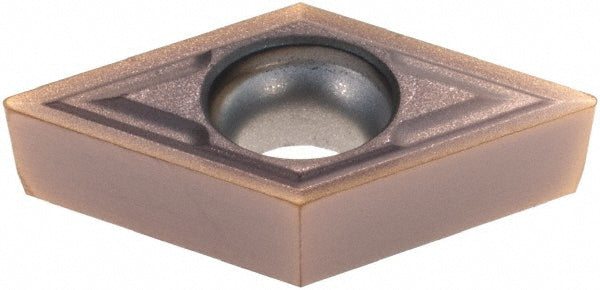

DCGT11T304N-SC Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 10HM047
MFR# 10HM047ISO/ANSI# DCGT11T304N-SCSeries DC
$16.11List $20.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HM047 is a DCGT11T304N-SC solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeDCGT32.51EFM
Chip breakerEFM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304N-SC
Manufacturer gradeAC530U
RakePositive
Rake angle6
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
