Sumitomo

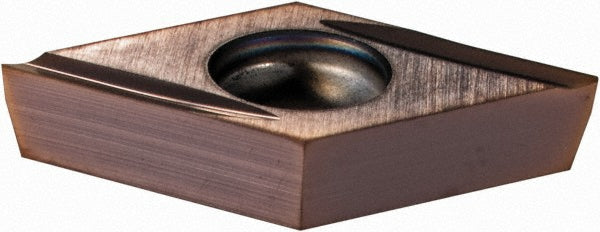

DCGT070201R-FX Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 10HM181
MFR# 10HM181ISO/ANSI# DCGT070201R-FXSeries DC
$13.72List $17.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HM181 is a DCGT070201R-FX solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeDCGT21.50RFX
Chip breakerRFX
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting directionRight Hand
Hole diameter0.1100
Included angle55.0
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.3031
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.5
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070201R-FX
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
