Sumitomo

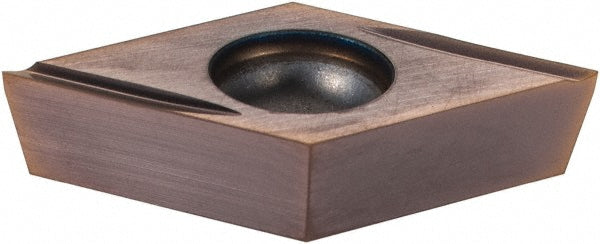

DCGT11T301R-FX Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 10HM185
MFR# 10HM185ISO/ANSI# DCGT11T301R-FXSeries DC
$18.00List $22.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HM185 is a DCGT11T301R-FX solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeDCGT32.50RFX
Chip breakerRFX
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting directionRight Hand
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.5
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T301R-FX
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
