Sumitomo

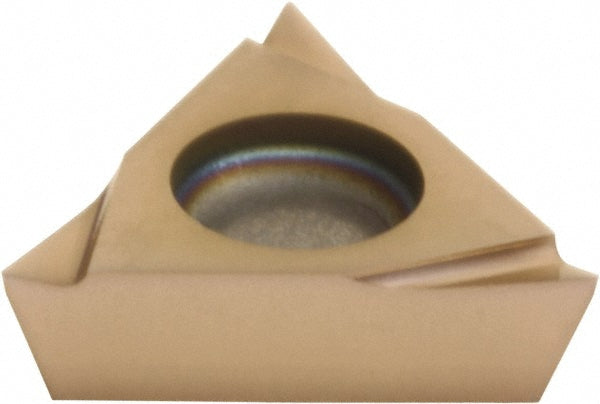

TPGT110304L-FY Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 10HM216
MFR# 10HM216ISO/ANSI# TPGT110304L-FYSeries TPGT
$14.43List $18.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HM216 is a TPGT110304L-FY solid carbide indexable insert, grade AC530U, TiAlN coated. Suited for steel.
Specifications
Ansi codeTPGT221LFY
Chip breakerFY
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting directionLeft Hand
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code221
Insert styleTPGT
Insert thickness in1/8
Iso codeTPGT110304L-FY
Manufacturer gradeAC530U
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
