Sumitomo

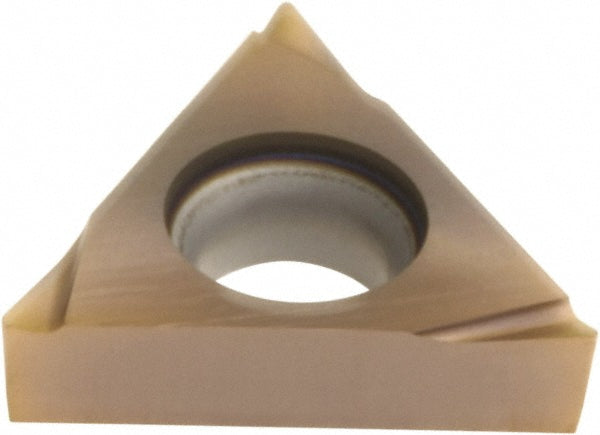

TBGT060101L-FY Carbide Insert, Grade AC530U, TiAlN - Sumitomo 10HM501
MFR# 10HM501ISO/ANSI# TBGT060101L-FYSeries TB
$11.23List $14.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
GradeAC530U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 10HM501 is a TBGT060101L-FY carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
ChipbreakerLFY
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.0900
Included angle60
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code520
Insert styleTBGT
Iso codeTBGT060101L-FY
Length0.2717
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
