Sumitomo

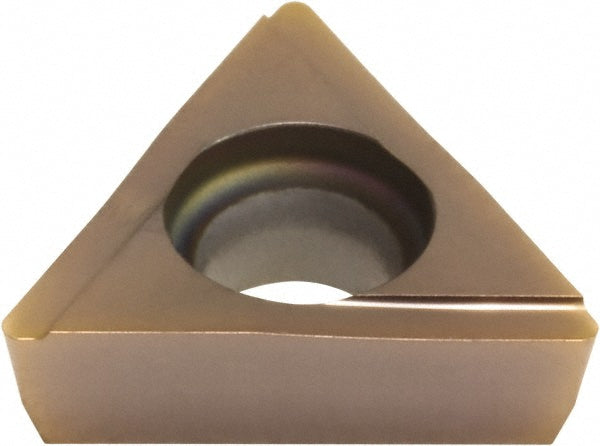

TPGT110304L-SD Carbide Insert, Grade AC510U, TiAlN - Sumitomo 10HV771
MFR# 10HV771ISO/ANSI# TPGG110304Series TP
$14.43List $18.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeAC510U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 10HV771 is a TPGT110304L-SD carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi insert codeTPGG221
Ansi size code221
Chip breakerL
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1300
Included angle60
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPGG
Insert thickness in1/8
Iso codeTPGT110304L-SD
Iso insert codeTPGG110304
Iso size code110304
Manufacturer gradeAC510U
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialSuperalloy
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
