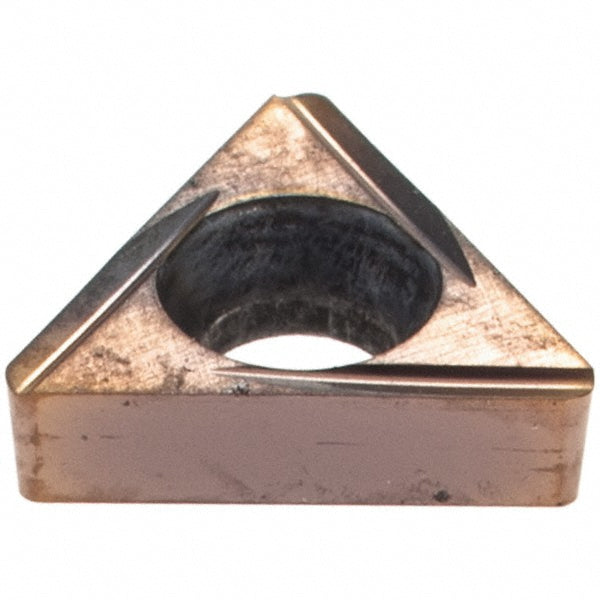

TBGT060104L-FX Carbide Insert, Grade AC510U, TiAlN - Sumitomo 10HVABH
MFR# 10HVABHISO/ANSI# TBGT060104L-FXSeries TB
$13.82List $17.42
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
GradeAC510U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 10HVABH is a TBGT060104L-FX carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
ChipbreakerLFX
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.0900
Included angle60
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code521
Insert styleTBGT
Iso codeTBGT060104L-FX
Length0.2717
Manufacturer gradeAC510U
RakePositive
Rake angle15
Relief angle5
Secondary workpiece materialSuperalloy; Titanium
StandardsANSI; ISO 13399
