Sumitomo

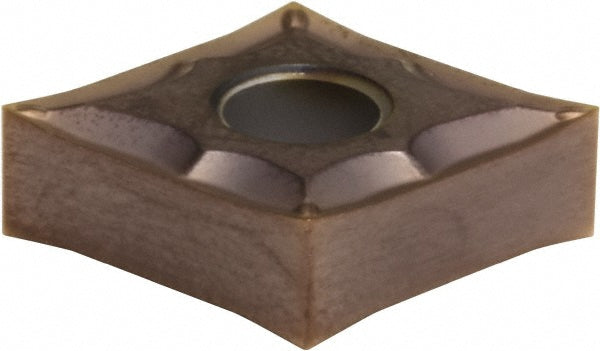

CNGG120408N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 10HVAEQ
MFR# 10HVAEQISO/ANSI# CNGG120408N-SUSeries CN
$14.10List $18.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HVAEQ is a CNGG120408N-SU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCNGG432ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120408N-SU
Manufacturer gradeAC510U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeG
